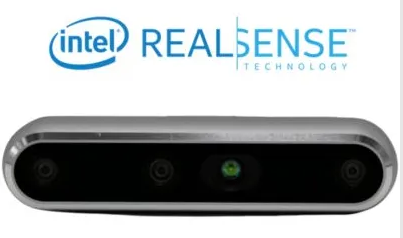

The RealSense D457 is a depth camera developed by Intel, designed for intelligent robot RGB-D depth vision scenarios and equipped with an integrated IMU. Below is a detailed introduction:

Key Features

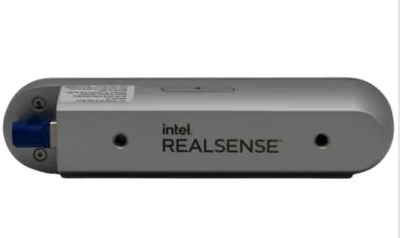

• Advanced Interface: It is Intel's first high-bandwidth stereo camera to adopt Gigabit Multimedia Serial Link (GMSL) and Fakra interfaces. GMSL supports multi-stream transmission over a single cable, with a maximum length of 15 meters when using coaxial cables, offering advantages such as low power consumption, low ESD/EMI noise, and low latency.

• High Protection Rating: Features an IP65-rated protective housing, resistant to dust and water splashes, making it suitable for various harsh indoor and outdoor environments.

• Integrated IMU: Equipped with a Bosch BMI085 Inertial Measurement Unit (IMU), which optimizes depth perception during camera movement, enhancing environmental awareness for robots, drones, and other devices.

Technical Specifications

• Depth Technology: Utilizes stereo vision technology.

• Depth Resolution: Up to 1280×720, with a maximum frame rate of 90fps.

• RGB Resolution: Up to 1280×800, with a frame rate of 30fps.

• Field of View: The depth lens has a field of view of 87°×58°.

• Working Range: The ideal working range is 0.6 meters to 6 meters. At maximum resolution, the minimum depth distance is approximately 52 cm, with depth accuracy of less than 2% at 4 meters.

• Hardware Architecture: Built on the D450 depth module and the new vision processor D4 Board V5. It integrates two global shutter image sensors for capturing high-precision depth data and includes an RGB camera for color imaging.

• Software Support: Compatible with the cross-platform, open-source Intel RealSense SDK 2.0, featuring an on-chip self-calibration option that completes camera calibration in less than 15 seconds without the need for a specialized target.

• Applications: Suitable for autonomous mobile robots, automotive infotainment systems, driver monitoring, and other fields. Its GMSL/FAKRA interface and IP65 protection rating make it well-suited to meet the connectivity and reliability requirements of these applications.

For the official webpage, please visit: RealSense D457 Details
