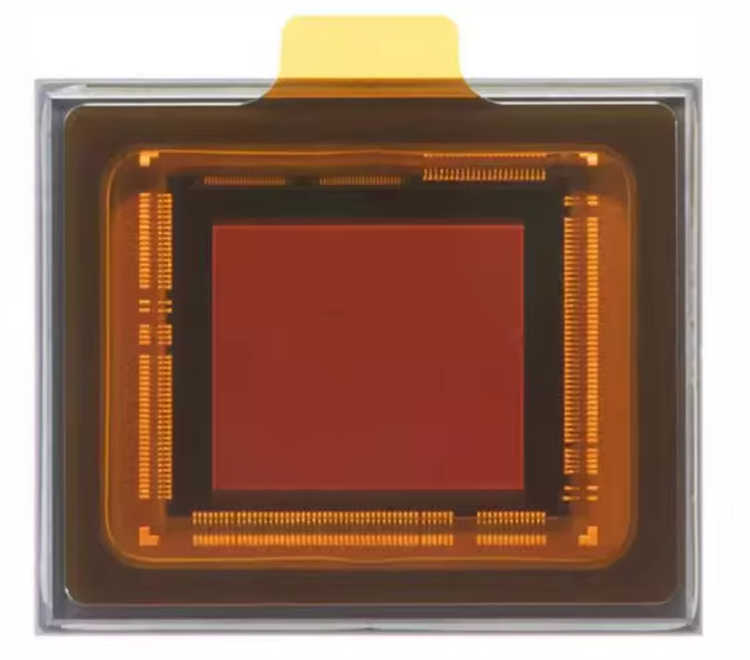

The Sony IMX585 is a high-performance CMOS image sensor launched by Sony Semiconductor Solutions Corporation, mainly designed for security surveillance and AI image processing. Below is a detailed introduction:

Technical Specifications

• Image Size: 1/1.2-inch with a diagonal of 12.84mm.

• Effective Pixels: Approximately 8.41 megapixels, with a resolution of 3856×2180.

• Pixel Size: 2.9μm × 2.9μm per cell.

• Frame Rate: Up to 90fps at 10-bit, 60fps at 12-bit.

• Interface: MIPI D-PHY 2/4/4×2/8 lanes.

• Power Supply: Analog power at 3.3V, digital power at 1.1V, interface power at 1.8V.

Key Features

• High Dynamic Range (HDR): Utilizes "STARVIS 2" technology, achieving a single-exposure dynamic range of up to 88dB—approximately 8 times that of previous 1/1.2-inch 4K image sensors—while suppressing artifacts during image capture. In multi-exposure mode, HDR can reach up to 106dB.

• High Sensitivity: Thanks to an innovative device structure that refracts incoming light, the near-infrared (NIR) light absorption rate is improved by about 1.7 times compared to its predecessor, enabling high-quality image capture even in low-light conditions such as nighttime.

Applications

Due to its high resolution, wide dynamic range, and high sensitivity, the IMX585 is widely used in security surveillance for high-precision image recognition. It is also suitable for industrial inspection, medical imaging, high-end camcorders, video production equipment, and other scenarios requiring superior image quality.

For more details, please visit: Sony IMX585 Details

You can vies its Datasheet:  IMX585-AAQJ1_Flyer.pdf
