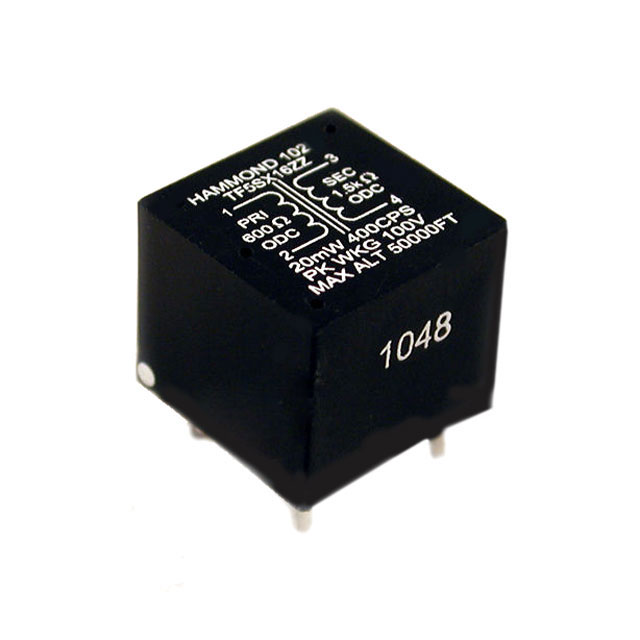

102B Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
102B
Product Number:
102B
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 50 / 1.5K TH
Datasheet:
Descnt:
50 Impedance Primary Ohms 1.5k Impedance Secondary Ohms Audio Transformer 310Hz Through Hole
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
102
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
50
Impedance - Secondary (Ohms)
1.5k
DC Resistance (DCR) - Primary
4Ohm
DC Resistance (DCR) - Secondary
95Ohm
Transformer Type
Miniature Epoxy Potted
Frequency Range
310Hz
Frequency Response
-1dB
Voltage - Isolation
100V
Insertion Loss
1.5dB
Return Loss
-
Power Level
20mW
Operating Temperature
-
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.570" L x 0.570" W (14.48mm x 14.48mm)
Height - Seated (Max)
0.480" (12.19mm)
Termination Style
PC Pin
Weight
0.02 lb (9.07 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
