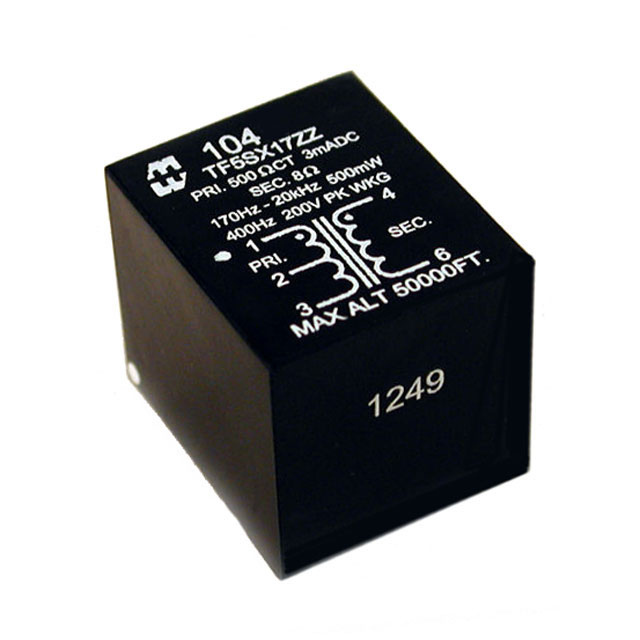

104B Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
104B
Product Number:
104B
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 150 / 80K TH
Datasheet:
Descnt:
150 Impedance Primary Ohms 80k Impedance Secondary Ohms Audio Transformer 60Hz Through Hole
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
104
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
150
Impedance - Secondary (Ohms)
80k
DC Resistance (DCR) - Primary
6.6Ohm
DC Resistance (DCR) - Secondary
3.73kOhm
Transformer Type
Miniature Epoxy Potted
Frequency Range
60Hz
Frequency Response
-1dB
Voltage - Isolation
200V
Insertion Loss
1dB
Return Loss
-
Power Level
5mW
Operating Temperature
-
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.860" L x 0.710" W (21.84mm x 18.03mm)
Height - Seated (Max)
0.750" (19.05mm)
Termination Style
PC Pin
Weight
0.05 lb (22.68 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
