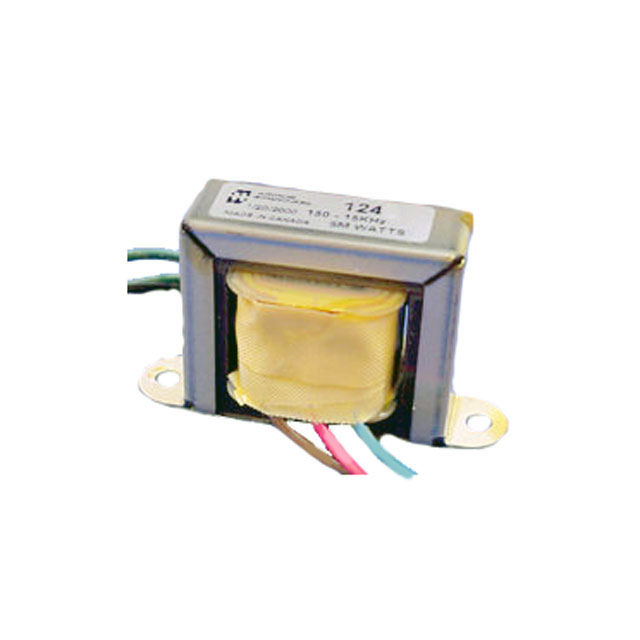

124B Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
124B
Product Number:
124B
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 10K / 90KCT CHAS MNT
Datasheet:
Descnt:
10k Impedance Primary Ohms 90kCT Impedance Secondary Ohms 1:3 Audio Transformer 150Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
124
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:3
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
90kCT
DC Resistance (DCR) - Primary
405Ohm
DC Resistance (DCR) - Secondary
1.525kOhm
Transformer Type
Tube Driver and Speaker Matching
Frequency Range
150Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
500Vrms
Insertion Loss
-
Return Loss
-
Power Level
5W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
2.380" L x 1.350" W (60.45mm x 34.29mm)
Height - Seated (Max)
1.430" (36.32mm)
Termination Style
Wire Leads
Weight
-
-
Documents & Media
HTML Datasheet
124 Series Spec.
124B DataSheet
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
