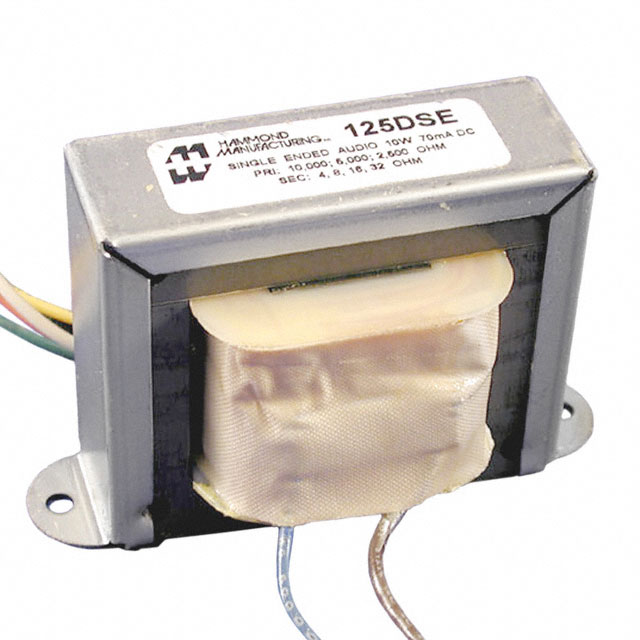

125DSE Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
125DSE
Product Number:
125DSE
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 2.5K-10K / 4-32 CHAS MNT
Datasheet:
Descnt:
2.5k ~ 10k Impedance Primary Ohms 4 ~ 32 Impedance Secondary Ohms Audio Transformer 100Hz ~ 15kHz Chassis Mount
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
125SE
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
2.5k ~ 10k
Impedance - Secondary (Ohms)
4 ~ 32
DC Resistance (DCR) - Primary
115Ohm
DC Resistance (DCR) - Secondary
590mOhm
Transformer Type
General Purpose
Frequency Range
100Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
1500V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
10W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
4.000" L x 2.100" W (101.60mm x 53.34mm)
Height - Seated (Max)
2.630" (66.80mm)
Termination Style
Wire Leads
Weight
2 lbs (907.2 g)
Base Product Number
125D
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
