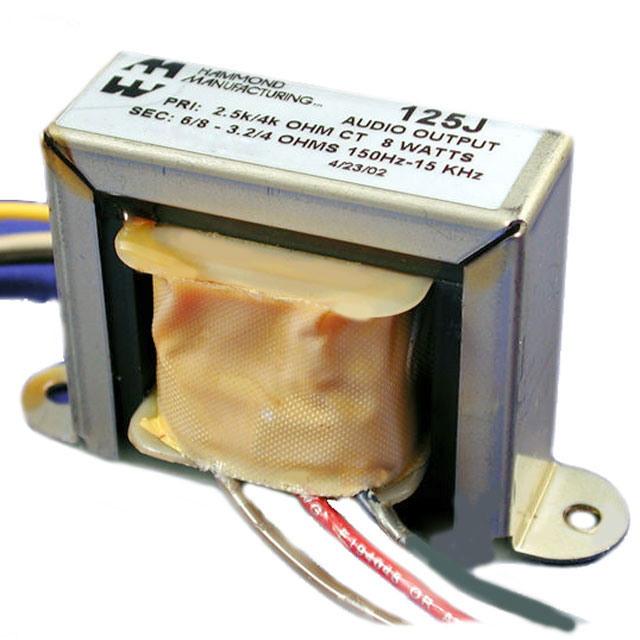

125J Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
125J
Product Number:
125J
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 2.5K 4K / 3.2, 4, 6, 8 CHAS
Datasheet:
Descnt:
2.5k, 4k Impedance Primary Ohms 3.2, 4, 6, 8 Impedance Secondary Ohms Audio Transformer 150Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
125
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
2.5k, 4k
Impedance - Secondary (Ohms)
3.2, 4, 6, 8
DC Resistance (DCR) - Primary
-
DC Resistance (DCR) - Secondary
-
Transformer Type
General Purpose
Frequency Range
150Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
8W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.250" L x 1.500" W (82.55mm x 38.10mm)
Height - Seated (Max)
1.940" (49.28mm)
Termination Style
Wire Leads
Weight
1 lb (453.59 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
