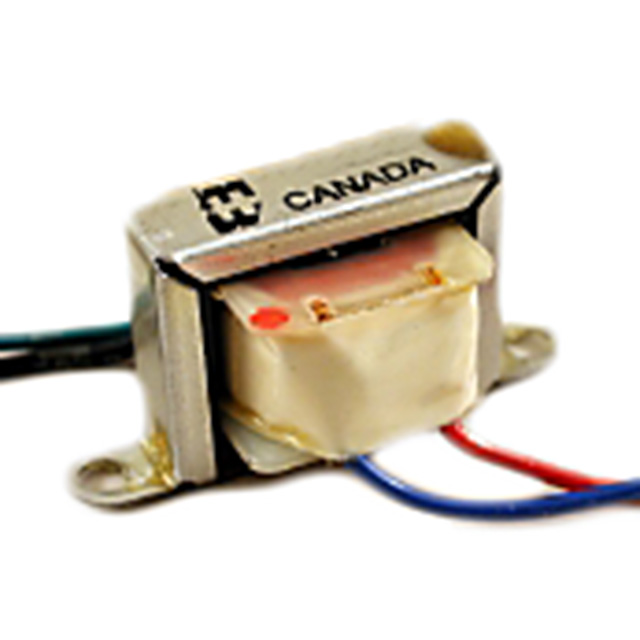

144P Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
144P
Product Number:
144P
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 10K / 3.2 CHAS MNT
Datasheet:
Descnt:
10k Impedance Primary Ohms 3.2 Impedance Secondary Ohms Audio Transformer 150Hz ~ 15kHz Chassis Mount
In Stock
9
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
144
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
3.2
DC Resistance (DCR) - Primary
575Ohm
DC Resistance (DCR) - Secondary
500mOhm
Transformer Type
Economical Open Type
Frequency Range
150Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
50mW
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
1.000" L x 0.690" W (25.40mm x 17.53mm)
Height - Seated (Max)
0.690" (17.53mm)
Termination Style
Wire Leads
Weight
0.031 lb (14.06 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
