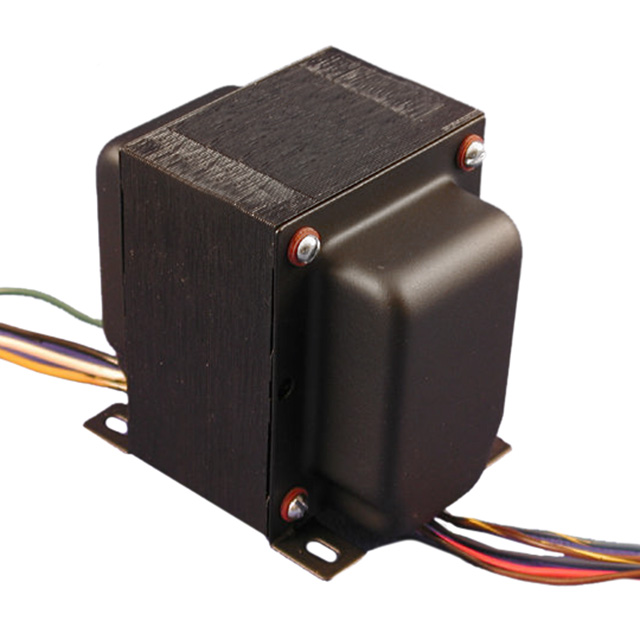

1620A Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1620A
Product Number:
1620A
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR 6.6KCT / 4, 8, 16 CHAS MNT
Datasheet:
Descnt:
6.6kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 30Hz ~ 30kHz Chassis Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
A
Packaging
Box
Part Status
Obsolete
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
6.6kCT
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
66.16Ohm, 74.93Ohm
DC Resistance (DCR) - Secondary
170mOhm, 300mOhm, 440mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
30Hz ~ 30kHz
Frequency Response
±1dB
Voltage - Isolation
2000V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
20W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max)
3.060" (77.72mm)
Termination Style
Wire Leads
Weight
3.5 lbs (1.6 kg)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3937-1620A
Standard Package
1
