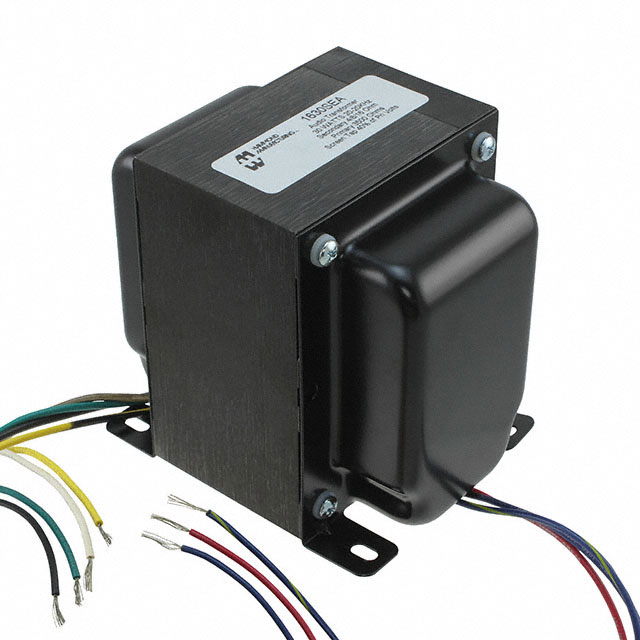

1630SEA Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1630SEA
Product Number:
1630SEA
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 3.5K / 4, 8, 16 CHAS MNT
Datasheet:
Descnt:
3.5k Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
In Stock
6
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1600
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
3.5k
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
110.1Ohm
DC Resistance (DCR) - Secondary
634mOhm
Transformer Type
Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range
20Hz ~ 20kHz
Frequency Response
±1dB
Voltage - Isolation
2828VDC 1 Second
Insertion Loss
±1dB
Return Loss
-
Power Level
30W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
4.980" L x 3.750" W (126.49mm x 95.25mm)
Height - Seated (Max)
4.650" (118.11mm)
Termination Style
Wire Leads
Weight
11 lbs (5 kg)
Base Product Number
1630
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
