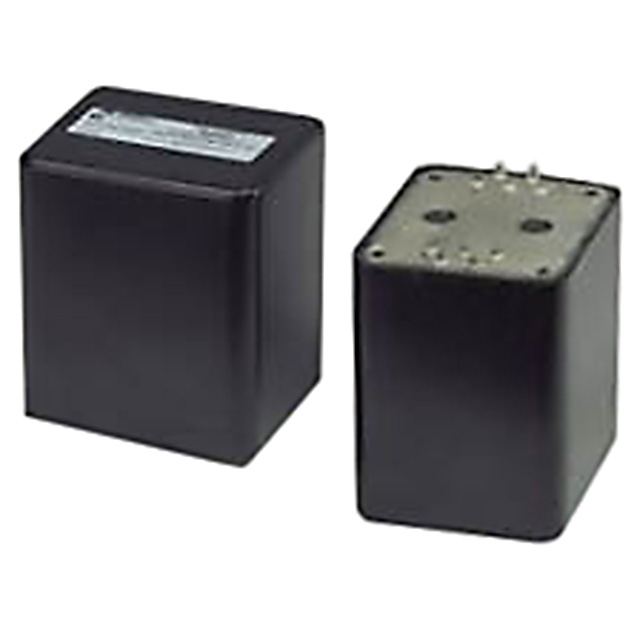

1650PP Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1650PP
Product Number:
1650PP
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 6.6KCT / 4, 8, 16 TH
Datasheet:
Descnt:
6.6kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 30Hz ~ 30kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1600
Packaging
Bulk
Part Status
Obsolete
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
6.6kCT
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
66.8Ohm, 160.5Ohm
DC Resistance (DCR) - Secondary
230mOhm, 370mOhm
Transformer Type
Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range
30Hz ~ 30kHz
Frequency Response
±1dB
Voltage - Isolation
2000V 1 Second
Insertion Loss
±1dB
Return Loss
-
Power Level
60W
Operating Temperature
-
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
3.880" L x 3.310" W (98.55mm x 84.07mm)
Height - Seated (Max)
4.250" (107.95mm)
Termination Style
-
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Q1163320A
Standard Package
1
