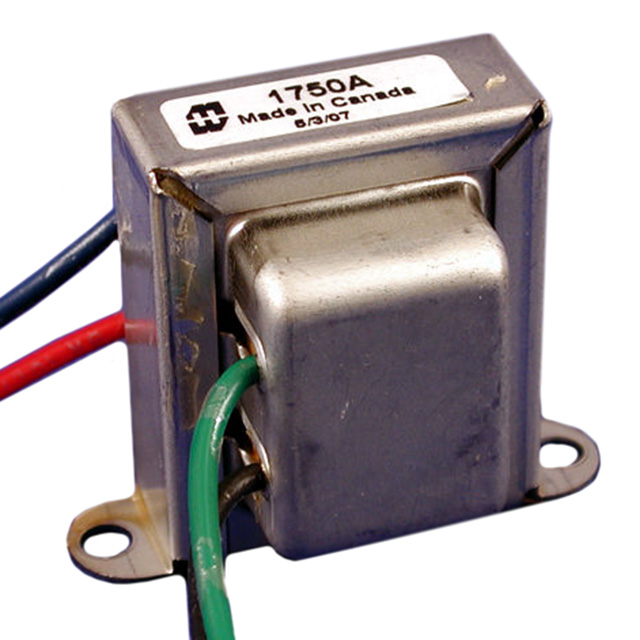

1750A Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750A
Product Number:
1750A
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 22.8K / 8 CHAS MNT
Datasheet:
Descnt:
22.8k Impedance Primary Ohms 8 Impedance Secondary Ohms 53.11:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
5
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
53.11:1
Impedance - Primary (Ohms)
22.8k
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
1.065kOhm
DC Resistance (DCR) - Secondary
1.02Ohm
Transformer Type
Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
3.5W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
2.000" L x 1.440" W (50.80mm x 36.58mm)
Height - Seated (Max)
1.773" (45.03mm)
Termination Style
Wire Leads
Weight
0.625 lb (283.5 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
