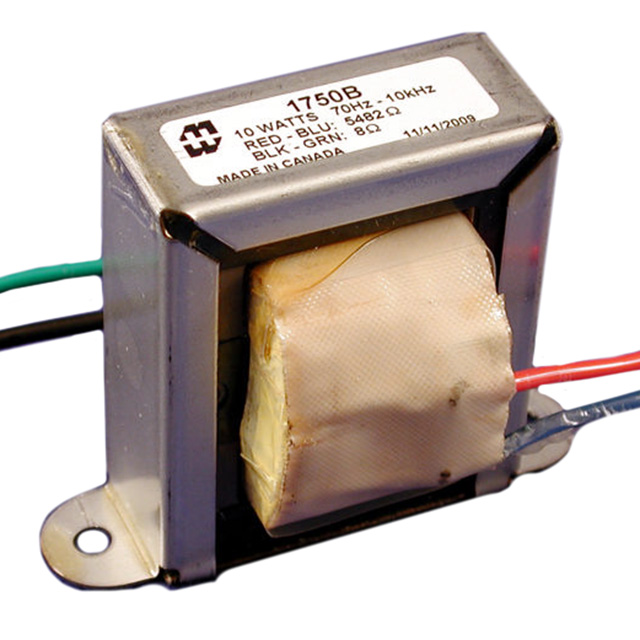

1750B Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750B
Product Number:
1750B
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 5.482K / 8 CHAS MNT
Datasheet:
Descnt:
5.482k Impedance Primary Ohms 8 Impedance Secondary Ohms Audio Transformer 70Hz ~ 10kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
5.482k
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
254.8Ohm
DC Resistance (DCR) - Secondary
420mOhm
Frequency Range
70Hz ~ 10kHz
Frequency Response
±1dB
Voltage - Isolation
1750V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
10W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
2.875" L x 1.900" W (73.02mm x 48.26mm)
Height - Seated (Max)
2.433" (61.80mm)
Termination Style
Wire Leads
Weight
-
Base Product Number
1750
-
Documents & Media
HTML Datasheet
1750A Drawing
1750B
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
