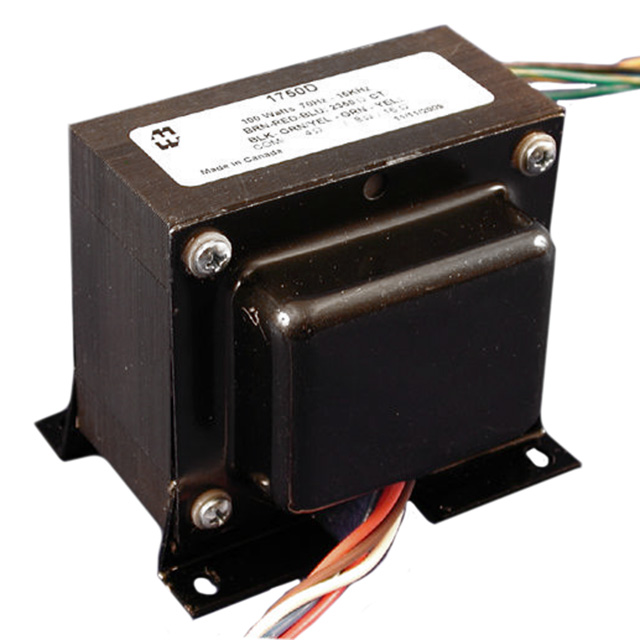

1750D Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750D
Product Number:
1750D
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 2.35KCT/25M / 4, 8, 16 CHAS
Datasheet:
Descnt:
2.35kCT/25m Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
2.35kCT/25m
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
33.09Ohm, 34.82Ohm, 370mOhm
DC Resistance (DCR) - Secondary
300mOhm, 690mOhm, 860mOhm
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
2000V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
100W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
4.050" L x 3.715" W (102.87mm x 94.36mm)
Height - Seated (Max)
3.563" (90.50mm)
Termination Style
Wire Leads
Weight
-
Base Product Number
1750
-
Documents & Media
HTML Datasheet
1750A Drawing
1750D
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
