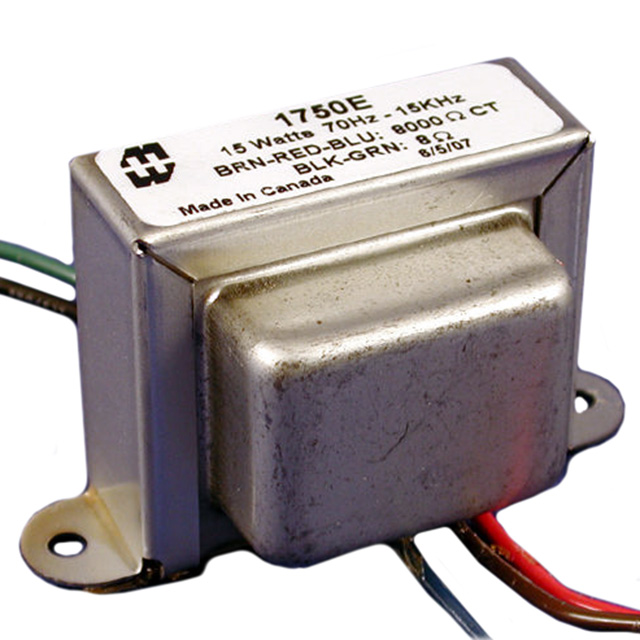

1750E Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750E
Product Number:
1750E
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 8KCT / 8 CHAS MNT
Datasheet:
Descnt:
8kCT Impedance Primary Ohms 8 Impedance Secondary Ohms 32.61:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
7
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
32.61:1
Impedance - Primary (Ohms)
8kCT
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
150Ohm, 300Ohm
DC Resistance (DCR) - Secondary
450mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
15W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.250" L x 2.085" W (82.55mm x 52.96mm)
Height - Seated (Max)
2.058" (52.27mm)
Termination Style
Wire Leads
Weight
1 lb (453.59 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
