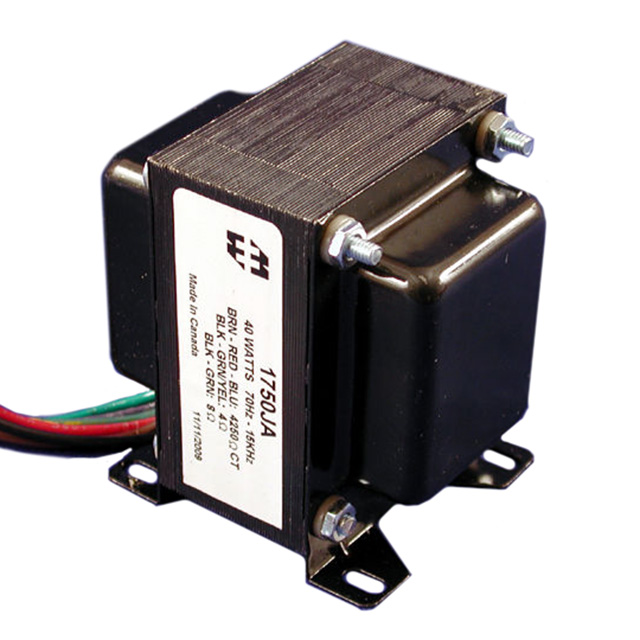

1750JA Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750JA
Product Number:
1750JA
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 4.25KCT / 4, 8 CHAS MNT
Datasheet:
Descnt:
4.25kCT Impedance Primary Ohms 4, 8 Impedance Secondary Ohms Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
4.25kCT
Impedance - Secondary (Ohms)
4, 8
DC Resistance (DCR) - Primary
82Ohm, 108.3Ohm
DC Resistance (DCR) - Secondary
253mOhm, 462mOhm
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
2000V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
40W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
2.500" L x 3.150" W (63.50mm x 80.01mm)
Height - Seated (Max)
3.319" (84.30mm)
Termination Style
Wire Leads
Weight
-
Base Product Number
1750J
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
