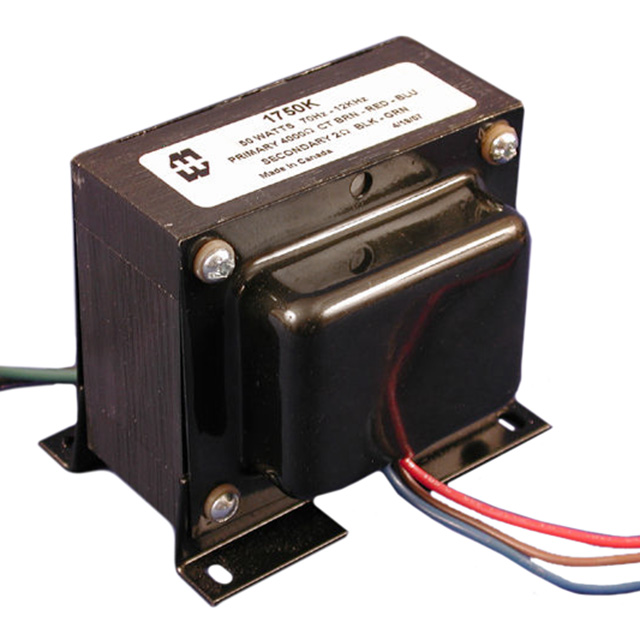

1750K Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750K
Product Number:
1750K
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 4KCT / 2 CHAS MNT
Datasheet:
Descnt:
4kCT Impedance Primary Ohms 2 Impedance Secondary Ohms 44.67:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
44.67:1
Impedance - Primary (Ohms)
4kCT
Impedance - Secondary (Ohms)
2
DC Resistance (DCR) - Primary
43.16Ohm, 46.28Ohm
DC Resistance (DCR) - Secondary
180mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
50W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
4.063" L x 3.125" W (103.20mm x 79.38mm)
Height - Seated (Max)
3.516" (89.31mm)
Termination Style
Wire Leads
Weight
0.625 lb (283.5 g)
-
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
