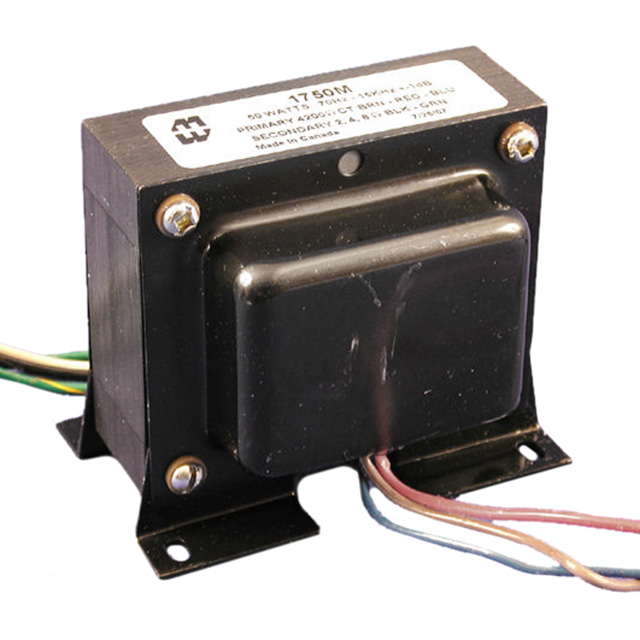

1750M Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750M
Product Number:
1750M
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR 4.2KCT / 2, 4, 8 CHAS MNT
Datasheet:
Descnt:
4.2kCT Impedance Primary Ohms 2, 4, 8 Impedance Secondary Ohms 22.93:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
22.93:1
Impedance - Primary (Ohms)
4.2kCT
Impedance - Secondary (Ohms)
2, 4, 8
DC Resistance (DCR) - Primary
68Ohm
DC Resistance (DCR) - Secondary
160mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
70Hz ~ 15kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
60W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
4.050" L x 3.050" W (102.87mm x 77.47mm)
Height - Seated (Max)
3.563" (90.50mm)
Termination Style
Wire Leads
Weight
0.625 lb (283.5 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
