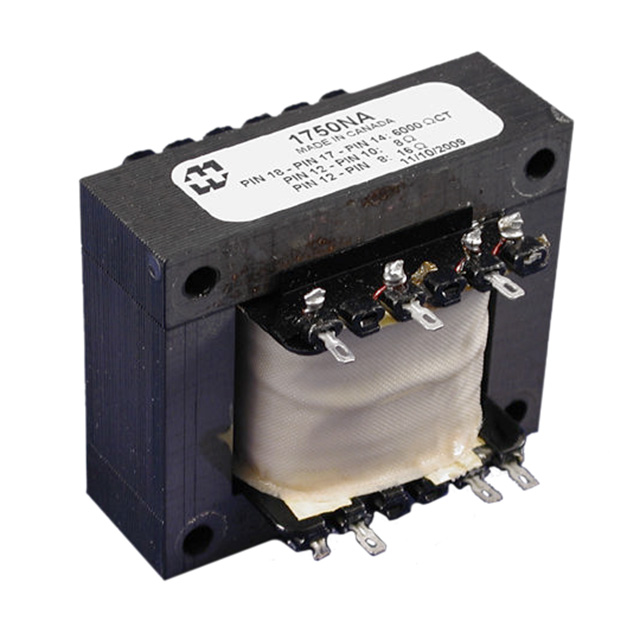

1750NA Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750NA
Product Number:
1750NA
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 6KCT / 8, 16 CHAS MNT
Datasheet:
Descnt:
6kCT Impedance Primary Ohms 8, 16 Impedance Secondary Ohms Audio Transformer 50Hz ~ 12kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
6kCT
Impedance - Secondary (Ohms)
8, 16
DC Resistance (DCR) - Primary
73.2Ohm, 74.41Ohm, 147.4Ohm
DC Resistance (DCR) - Secondary
300mOhm, 580mOhm, 820mOhm
Frequency Range
50Hz ~ 12kHz
Frequency Response
±1dB
Voltage - Isolation
2500V 1 Second
Insertion Loss
-
Return Loss
-
Power Level
30W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.000" L x 2.465" W (76.20mm x 62.61mm)
Height - Seated (Max)
2.525" (64.14mm)
Termination Style
Solder Lug
Weight
-
Base Product Number
1750N
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
