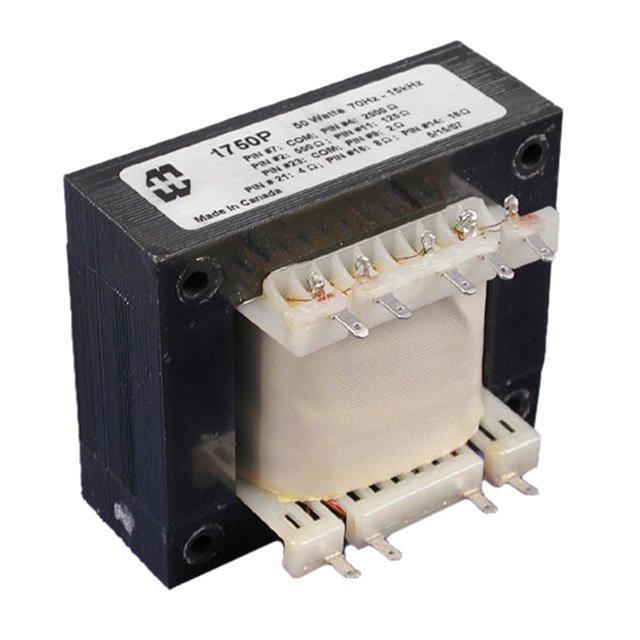

1750P Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750P
Product Number:
1750P
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 3.4KCT / 2, 4, 8, 16 CHAS
Datasheet:
Descnt:
3.4kCT Impedance Primary Ohms 2, 4, 8, 16 Impedance Secondary Ohms 14.24:1 Audio Transformer 50Hz ~ 12kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
14.24:1
Impedance - Primary (Ohms)
3.4kCT
Impedance - Secondary (Ohms)
2, 4, 8, 16
DC Resistance (DCR) - Primary
41.3Ohm, 40.5Ohm, 81.8Ohm
DC Resistance (DCR) - Secondary
120mOhm, 150mOhm, 210mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
50Hz ~ 12kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
50W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.750" L x 3.090" W (95.25mm x 78.49mm)
Height - Seated (Max)
3.188" (80.98mm)
Termination Style
Solder Lug
Weight
0.625 lb (283.5 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
