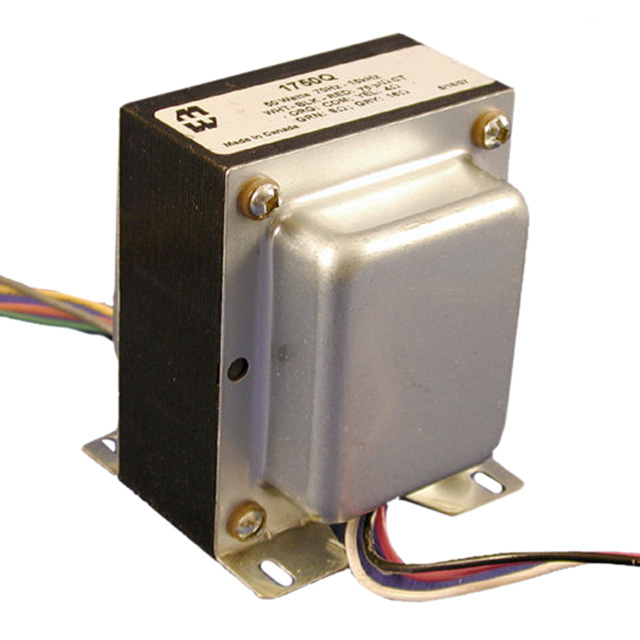

1750Q Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750Q
Product Number:
1750Q
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 7.371KCT / 4, 8, 16 CHAS MT
Datasheet:
Descnt:
7.371kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms 21.46:1 Audio Transformer 50Hz ~ 12kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
21.46:1
Impedance - Primary (Ohms)
7.371kCT
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
81.61Ohm, 78.63Ohm
DC Resistance (DCR) - Secondary
120mOhm, 190mOhm, 270mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
50Hz ~ 12kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
50W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.125" L x 3.280" W (79.38mm x 83.31mm)
Height - Seated (Max)
3.813" (96.85mm)
Termination Style
Wire Leads
Weight
0.625 lb (283.5 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
