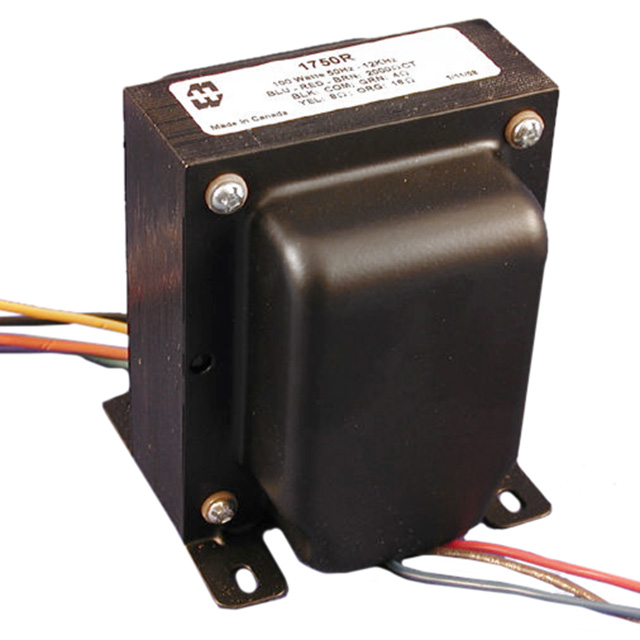

1750R Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
1750R
Product Number:
1750R
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
XFMR 2KCT / 4, 8, 16 CHAS MNT
Datasheet:
Descnt:
2kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms 11.11:1 Audio Transformer 50Hz ~ 12kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
1750
Packaging
Box
Part Status
Active
Turns Ratio - Primary:Secondary
11.11:1
Impedance - Primary (Ohms)
2kCT
Impedance - Secondary (Ohms)
4, 8, 16
DC Resistance (DCR) - Primary
25.72Ohm, 12.86Ohm
DC Resistance (DCR) - Secondary
222mOhm
Transformer Type
Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range
50Hz ~ 12kHz
Frequency Response
±1dB
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
100W
Operating Temperature
-
Approval Agency
-
Mounting Type
Chassis Mount
Size / Dimension
3.750" L x 3.936" W (95.25mm x 99.97mm)
Height - Seated (Max)
4.623" (117.42mm)
Termination Style
Wire Leads
Weight
0.625 lb (283.5 g)
Base Product Number
1750
Documents & Media
HTML Datasheet
1750A Drawing
1750 Series Catalog Page
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
