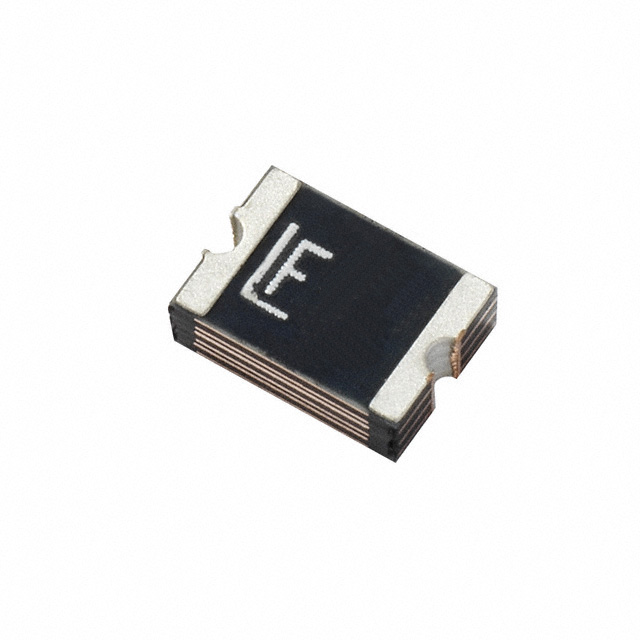

1812L110PR Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
1812L110PR
Product Number:
1812L110PR
MFR Standard Lead Time:
13 Weeks
Package/Case:
1812 (4532 Metric), Concave
Detailed Description:
PTC RESET FUSE 8V 1.1A 1812
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
In Stock
11091
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
POLY-FUSE®, 1812L
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
8V
Current - Hold (Ih) (Max)
1.1 A
Current - Trip (It)
2.2 A
Current - Max
100 A
Time to Trip
300 ms
Resistance - Initial (Ri) (Min)
40 mOhms
Resistance - Post Trip (R1) (Max)
210 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric), Concave
Size / Dimension
0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)
-
Thickness (Max)
0.028" (0.71mm)
Lead Spacing
-
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Environmental Information
Product Drawings
1812L(110PR,150ZR)
1812L Series Footprint
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
2,000
