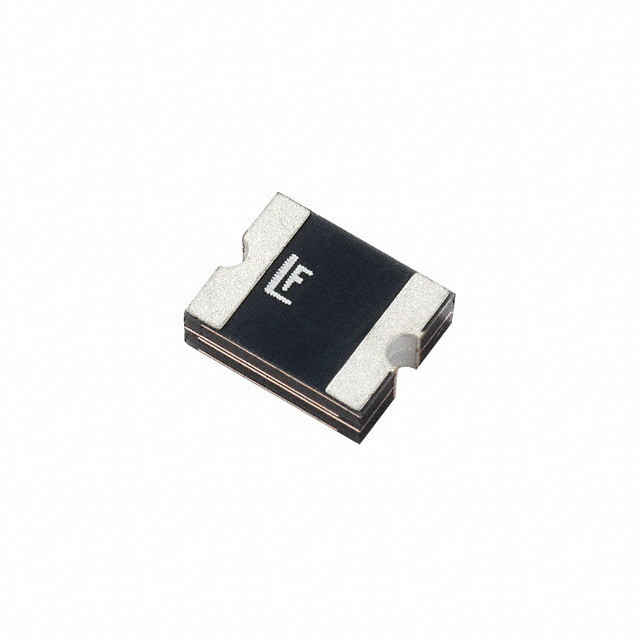

2016L050MR Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
2016L050MR
Product Number:
2016L050MR
MFR Standard Lead Time:
13 Weeks
Package/Case:
2016 (5041 Metric), Concave
Detailed Description:
PTC RESET FUSE 60V 550MA 2016
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 60V 550 mA Ih Surface Mount 2016 (5041 Metric), Concave
In Stock
34290
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
POLY-FUSE®, 2016L
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
60V
Current - Hold (Ih) (Max)
550 mA
Current - Trip (It)
1.1 A
Current - Max
20 A
Time to Trip
5 s
Resistance - Initial (Ri) (Min)
200 mOhms
Resistance - Post Trip (R1) (Max)
1 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
2016 (5041 Metric), Concave
Size / Dimension
0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max)
-
Thickness (Max)
0.079" (2.00mm)
Lead Spacing
-
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
2016L Series
Circuit Protection Selection Guide
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
1,000
