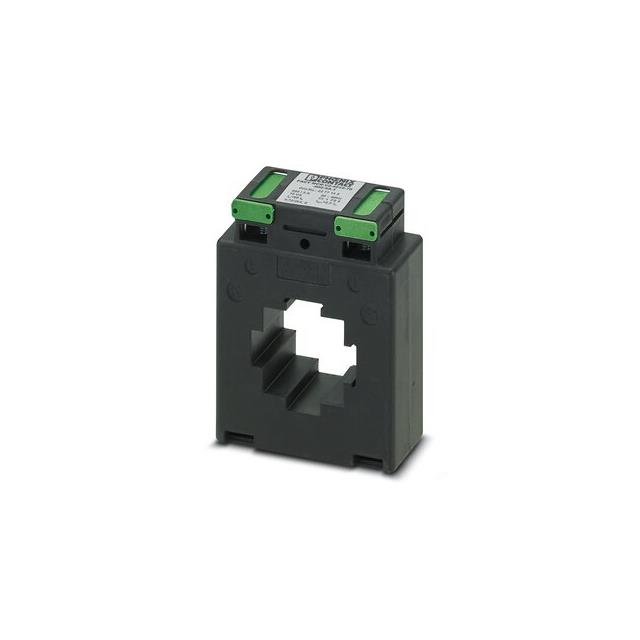

2277145 Phoenix Contact
Favorite
Compare
Manufacturer:
Phoenix Contact
MFR Product Number:
2277145
Product Number:
2277145
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:160 800A DIN
Datasheet:
Descnt:
800 A Current Sense Transformer 50Hz ~ 60Hz DIN Rail
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Phoenix Contact
Series
PACT
Packaging
Bulk
Part Status
Active
Frequency Range
50Hz ~ 60Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
800 A
ET (Volt-Time)
-
DC Resistance (DCR)
-
Ratings
-
Mounting Type
DIN Rail
Size / Dimension
2.756" L x 1.181" W (70.00mm x 30.00mm)
Height - Seated (Max)
3.543" (90.00mm)
Termination Style
Terminal Block
Weight
-
-
Documents & Media
Environmental Information
PCN Design/Specification
Housing design change 22/FEB/2024
PACT Transformer DESIGN 17/Mar/2024
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8504.32.0000
Additional Resources
Other Names
PACT MCR-V2-4012- 70- 800-5A-1
Standard Package
1
