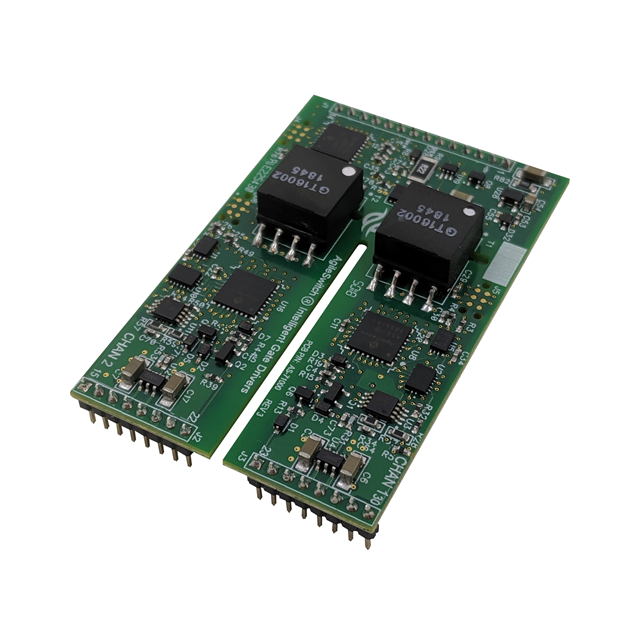

2ASC-12A1HP Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
2ASC-12A1HP
Product Number:
2ASC-12A1HP
MFR Standard Lead Time:
22 Weeks
Package/Case:
Module
Detailed Description:
SILICON CARBIDE GATE DRIVER
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting Module
In Stock
13
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Bulk
Part Status
Active
DigiKey Programmable
Verified
Driven Configuration
Half-Bridge
Channel Type
Synchronous
Number of Drivers
2
Gate Type
P-Channel MOSFET
Voltage - Supply
14V ~ 16V
Logic Voltage - VIL, VIH
1.25V, 3.5V
Current - Peak Output (Source, Sink)
10A, 10A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
80ns, 90ns
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Package / Case
Module
Supplier Device Package
Module
Base Product Number
2ASC-12
-
Documents & Media
Featured Product
AgileSwitch® Programmable Silicon Carbide (SiC) Gate Drivers
AgileSwitch® Digital SiC and IGBT Gate Drivers
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8543.70.9860
-
Additional Resources
Other Names
150-2ASC-12A1HP
Standard Package
1
