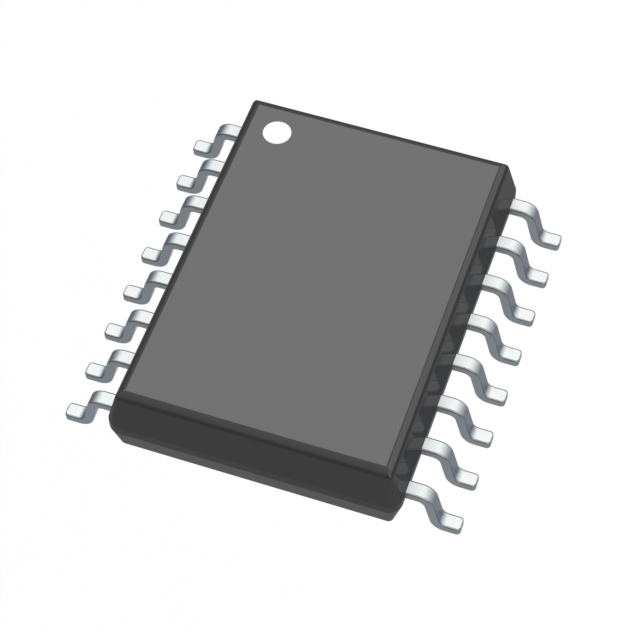

2ED1322S12MXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
2ED1322S12MXUMA1
Product Number:
2ED1322S12MXUMA1
MFR Standard Lead Time:
26 Weeks
Package/Case:
16-SOIC (0.295\, 7.50mm Width)
Detailed Description:
HALF-BRIDGE GATE DRIVER
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting PG-DSO-16-U02
In Stock
971
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT, SiC MOSFET
Voltage - Supply
13V ~ 20V
Logic Voltage - VIL, VIH
1.1V, 1.7V
Current - Peak Output (Source, Sink)
2.3A, 4.6A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
48ns, 48ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
PG-DSO-16-U02
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
