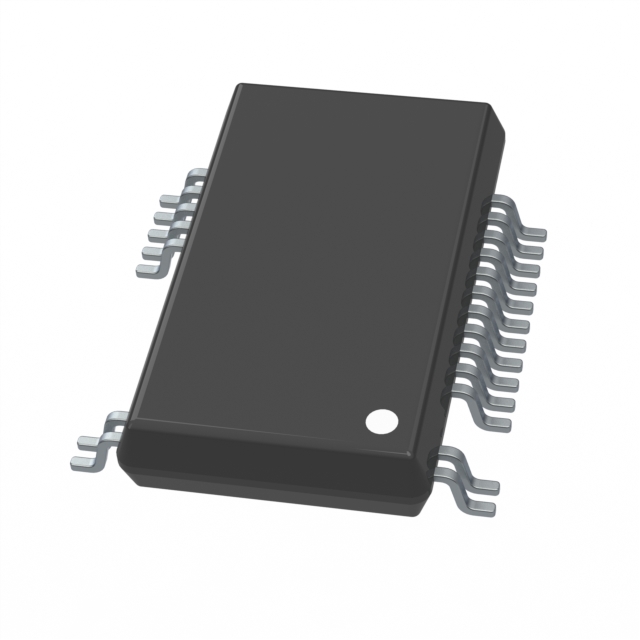

2ED1323S12PXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
2ED1323S12PXUMA1
Product Number:
2ED1323S12PXUMA1
MFR Standard Lead Time:
26 Weeks
Package/Case:
20-BSSOP (0.295\, 7.50mm Width)
Detailed Description:
HALF-BRIDGE GATE DRIVER
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting PG-DSO-20-U03
In Stock
998
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Driven Configuration
Half-Bridge
Channel Type
Synchronous
Number of Drivers
1
Gate Type
IGBT
Voltage - Supply
13V ~ 25V
Logic Voltage - VIL, VIH
0.7V, 0.7V
Current - Peak Output (Source, Sink)
2.3A, 2.3A
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
1200 V
Rise / Fall Time (Typ)
48ns, 48ns
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
20-BSSOP (0.295", 7.50mm Width)
Supplier Device Package
PG-DSO-20-U03
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
