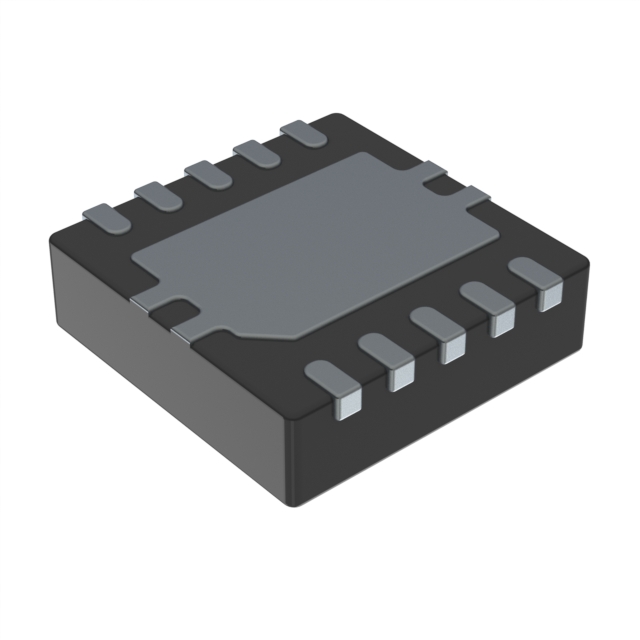

2ED2744S01GXTMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
2ED2744S01GXTMA1
Product Number:
2ED2744S01GXTMA1
MFR Standard Lead Time:
26 Weeks
Package/Case:
10-VFDFN Exposed Pad
Detailed Description:
160 V HALF BRIDGE SOI GATE DRIVE
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting PG-VSON-10-5
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
N-Channel MOSFET
Voltage - Supply
7V ~ 18V
Logic Voltage - VIL, VIH
0.8V, 2V
Current - Peak Output (Source, Sink)
2A, 4A
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
160 V
Rise / Fall Time (Typ)
24ns, 12ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
10-VFDFN Exposed Pad
Supplier Device Package
PG-VSON-10-5
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Additional Resources
Other Names
Standard Package
3,000
