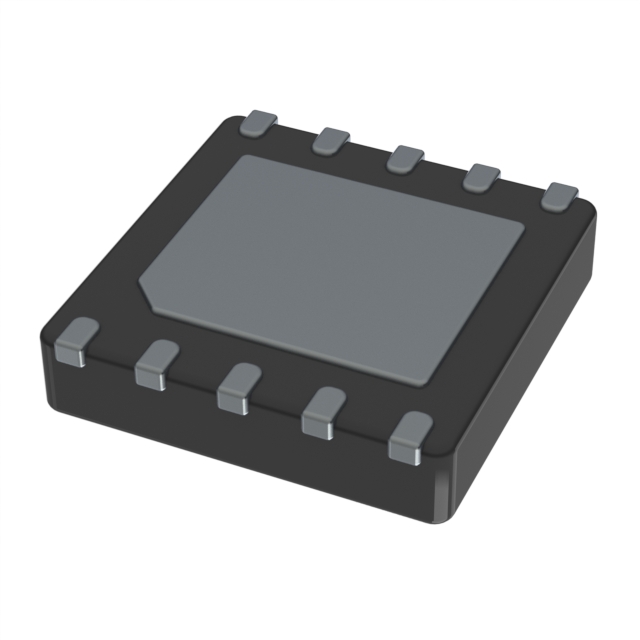

2EDL8033G4CXTMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
2EDL8033G4CXTMA1
Product Number:
2EDL8033G4CXTMA1
MFR Standard Lead Time:
13 Weeks
Package/Case:
10-VDFN Exposed Pad
Detailed Description:
INT. POWERSTAGE/DRIVER
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting PG-VDSON-10-2
In Stock
4973
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
EiceDRIVER™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
N-Channel MOSFET
Voltage - Supply
8V ~ 17V
Logic Voltage - VIL, VIH
-
Current - Peak Output (Source, Sink)
3A, 6A
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
120 V
Rise / Fall Time (Typ)
4.6ns, 3.3ns
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-VDFN Exposed Pad
Supplier Device Package
PG-VDSON-10-2
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
5,000
