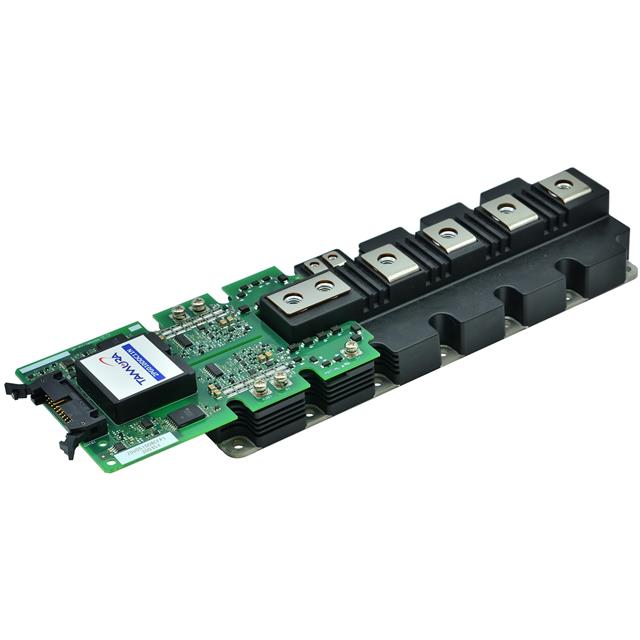

2PG010DDC11N Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
2PG010DDC11N
Product Number:
2PG010DDC11N
MFR Standard Lead Time:
Package/Case:
Module
Detailed Description:
GATE DRIVER FOR2MBI1800XXF170-50
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting Module
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
-
Packaging
Tray
Part Status
Obsolete
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT
Voltage - Supply
13V ~ 28V
Logic Voltage - VIL, VIH
0.5V, 3.3V
Current - Peak Output (Source, Sink)
43A, 43A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
500ns, 500ns
Operating Temperature
-40°C ~ 85°C
Mounting Type
Chassis Mount
Package / Case
Module
Supplier Device Package
Module
Base Product Number
2PG010
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8543.70.9860
-
Additional Resources
Other Names
132-2PG010DDC11N
Standard Package
20
