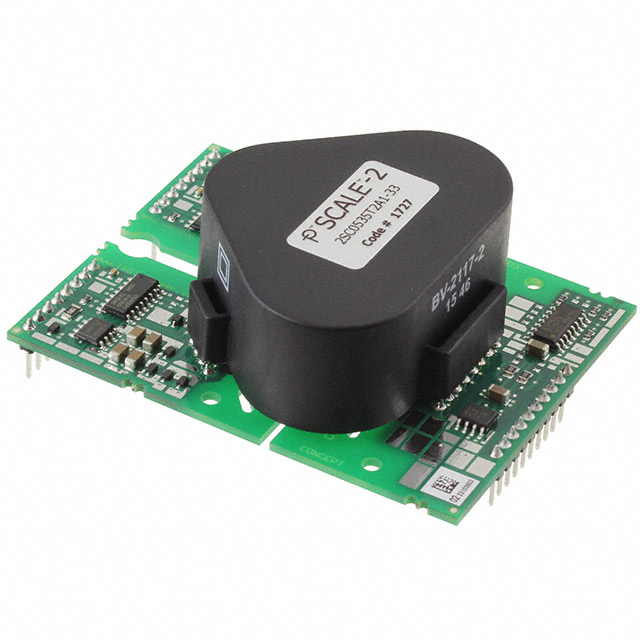

2SC0535T2A1-33 Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
2SC0535T2A1-33
Product Number:
2SC0535T2A1-33
MFR Standard Lead Time:
26 Weeks
Package/Case:
Module
Detailed Description:
IC GATE DRVR HI/LOW SIDE MODULE
Datasheet:
Descnt:
High-Side or Low-Side Gate Driver IC Module
In Stock
86
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
SCALE™-2
Packaging
Bulk
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
High-Side or Low-Side
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT
Voltage - Supply
14.5V ~ 15.5V
Logic Voltage - VIL, VIH
-
Current - Peak Output (Source, Sink)
35A, 35A
Input Type
-
High Side Voltage - Max (Bootstrap)
3300 V
Rise / Fall Time (Typ)
20ns, 25ns
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
Module
Supplier Device Package
Module
Base Product Number
2SC0535
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8473.30.1180
-
Additional Resources
Other Names
Standard Package
12
