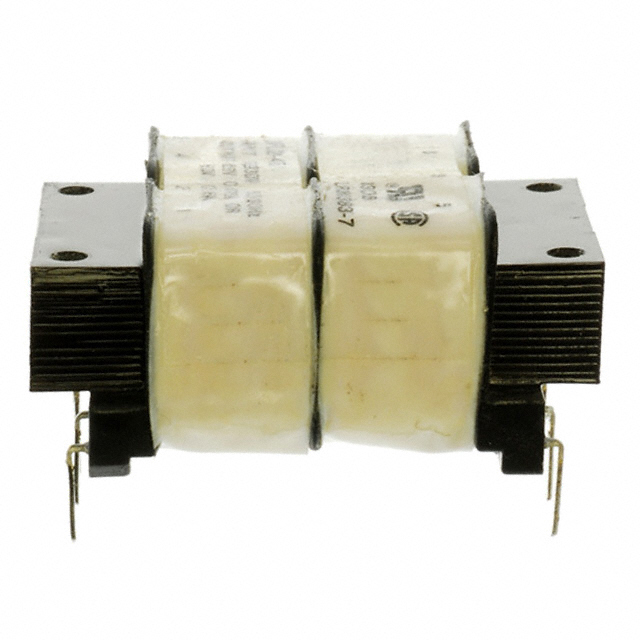

3FL24-500 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
3FL24-500
Product Number:
3FL24-500
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 12VA TH
Datasheet:
Descnt:
In Stock
38
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
3FL
Packaging
Tube
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 12V, Series 24V
Current - Output (Max)
Parallel 1A, Series 500mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
12VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
63.50mm L x 50.80mm W
Height - Seated (Max)
27.05mm
Voltage - Isolation
1500Vrms
Weight
-
Documents & Media
Datasheets
Product Drawings
3FL, PF Series Schematic
3FL, PF(T) Series Side
3FL, PF Series Side
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
Standard Package
32
