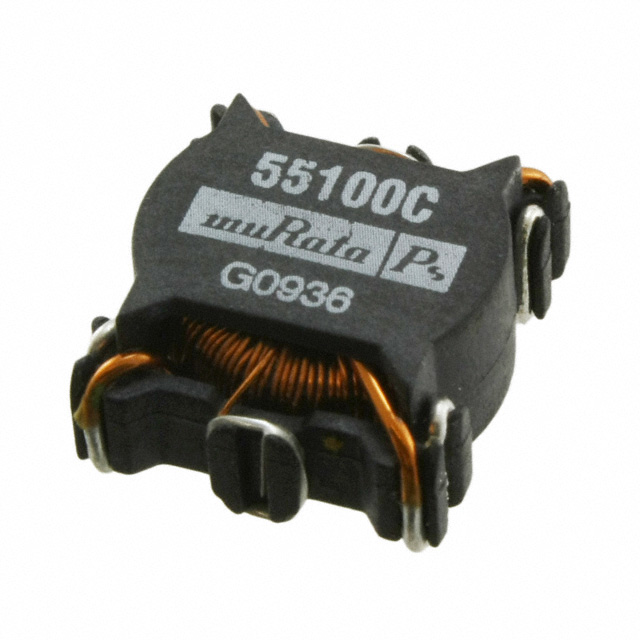

55100C Murata Power Solutions Inc.
Favorite
Compare
Manufacturer:
Murata Power Solutions Inc.
MFR Product Number:
55100C
Product Number:
55100C
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:1:100 15A SMD
Datasheet:
Descnt:
1:1:100 Current Sense Transformer 50kHz ~ 500kHz 2.3mOhm Primary, 850mOhm Secondary 14.8 mH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Murata Power Solutions Inc.
Series
5500
Packaging
Tube
Part Status
Obsolete
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Inductance
14.8 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1:100
Current Ratio
-
DC Resistance (DCR)
2.3mOhm Primary, 850mOhm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.496" L x 0.575" W (12.60mm x 14.60mm)
Height - Seated (Max)
0.280" (7.10mm)
Termination Style
-
Weight
0.06 oz (1.71 g)
Base Product Number
55
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
811-1201-5
Standard Package
35
