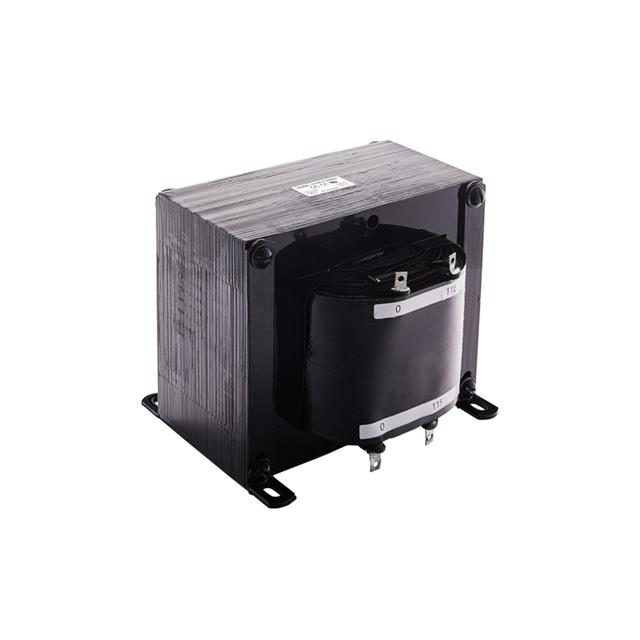

56-25 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
56-25
Product Number:
56-25
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 1400VA CHAS
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
-
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
105V, 115V, 125V
Voltage - Secondary (Full Load)
Parallel 28V, Series 56V
Current - Output (Max)
Parallel 50A, Series 25A
Primary Winding(s)
Single, Multiple Taps
Secondary Winding(s)
Dual
Center Tap
Yes
Power - Max
1400VA
Mounting Type
Chassis Mount
Termination Style
Solder, Quick Connect
Size / Dimension
162.00mm L x 181.00mm W
Height - Seated (Max)
134.90mm
Voltage - Isolation
1500Vrms
Weight
38 lbs (17.2 kg)
Documents & Media
Datasheets
DL Series Datasheet
Power Xfrmr, Hi Freq Magnetics Catalog
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.32.0000
-
Additional Resources
Standard Package
1
-
