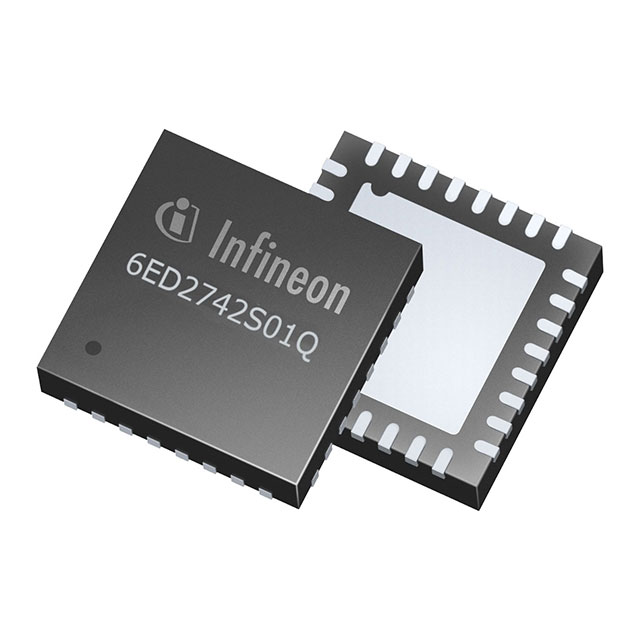

6ED2742S01QXTMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
6ED2742S01QXTMA1
Product Number:
6ED2742S01QXTMA1
MFR Standard Lead Time:
12 Weeks
Package/Case:
32-PowerVFQFN
Detailed Description:
THREE-PHASE MOTOR CONTROL GATE D
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting 32-VQFN (5x5)
In Stock
2088
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
3-Phase
Number of Drivers
6
Gate Type
N-Channel MOSFET
Voltage - Supply
6V ~ 140V
Logic Voltage - VIL, VIH
1.4V, 1.4V
Current - Peak Output (Source, Sink)
1A, 2A
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
160 V
Rise / Fall Time (Typ)
20ns, 10ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
32-PowerVFQFN
Supplier Device Package
32-VQFN (5x5)
Base Product Number
6ED2742
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
