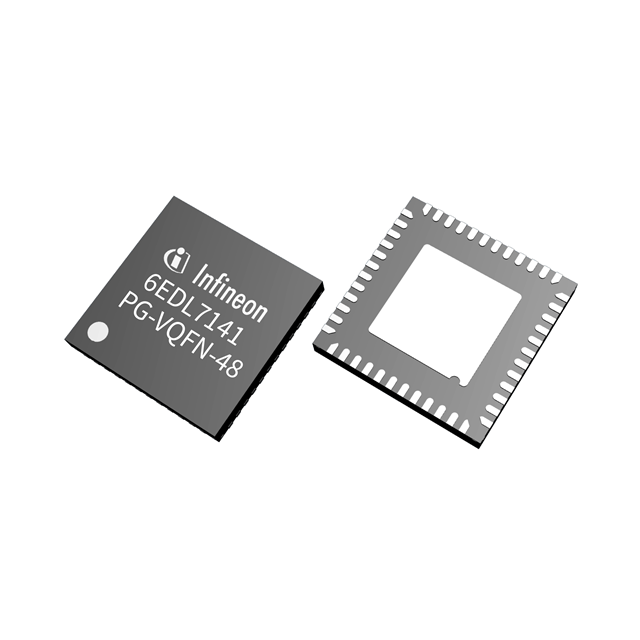

6EDL7141XUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
6EDL7141XUMA1
Product Number:
6EDL7141XUMA1
MFR Standard Lead Time:
16 Weeks
Package/Case:
48-VFQFN Exposed Pad
Detailed Description:
3-PHASE SMART GATE DRIVE CONTROL
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting PG-VQFN-48-78
In Stock
1449
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
3-Phase
Number of Drivers
3
Gate Type
N-Channel MOSFET
Voltage - Supply
5.5V ~ 60V
Logic Voltage - VIL, VIH
0.8V, 2V
Current - Peak Output (Source, Sink)
1.5A, 1.5A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
-
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
48-VFQFN Exposed Pad
Supplier Device Package
PG-VQFN-48-78
Base Product Number
6EDL7141
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
