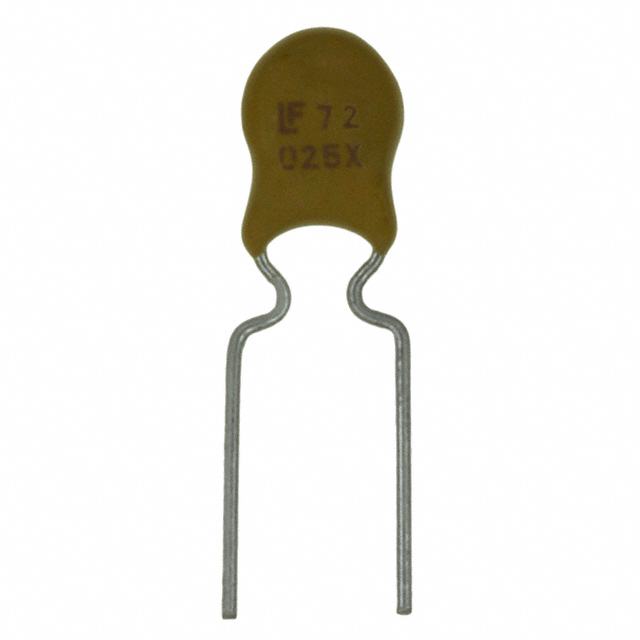

72R025XU Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
72R025XU
Product Number:
72R025XU
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 72V 250MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 72V 250 mA Ih Through Hole Radial, Disc
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
POLY-FUSE®, 72R
Packaging
Bulk
Part Status
Obsolete
Type
Polymeric
Voltage - Max
72V
Current - Hold (Ih) (Max)
250 mA
Current - Trip (It)
500 mA
Current - Max
40 A
Time to Trip
2.5 s
Resistance - Initial (Ri) (Min)
1.25 Ohms
Resistance - Post Trip (R1) (Max)
3 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max)
0.500" (12.70mm)
Thickness (Max)
-
Lead Spacing
0.201" (5.10mm)
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Product Drawings
60R,72R Series Side
(60R,72R)(010,017,025,030)X Series
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
500
