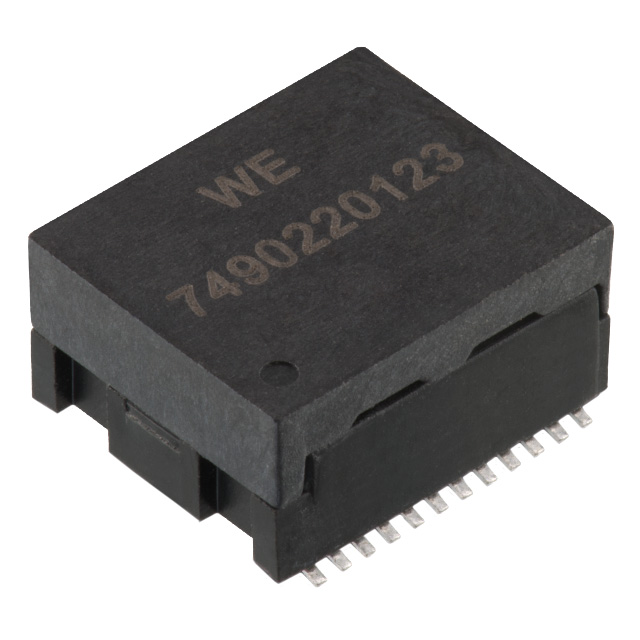

7490220123 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
7490220123
Product Number:
7490220123
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet:
Descnt:
180µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
In Stock
1944
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-LAN
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
LAN 10/100/1000 Base-T
Inductance
180µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type
Surface Mount
Size / Dimension
0.720" L x 0.579" W (18.29mm x 14.70mm)
Height - Seated (Max)
0.346" (8.80mm)
Operating Temperature
-40°C ~ 85°C
Weight
-
-
Documents & Media
Datasheets
PCN Design/Specification
7490yyy Datasheet Correction 26/Apr/2024
Mult Devs Product Improvement 23/Jun/2022
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
290
