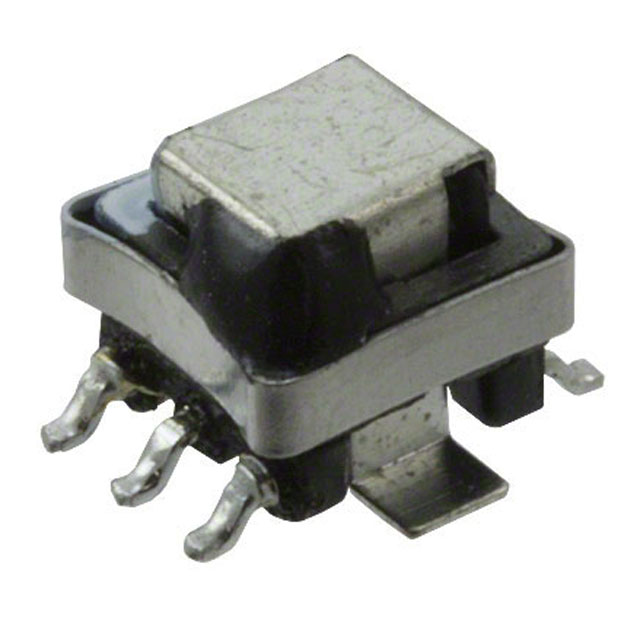

749251040 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
749251040
Product Number:
749251040
MFR Standard Lead Time:
27 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:40 10A SMD
Datasheet:
Descnt:
1:40 Current Sense Transformer 6mOhm Primary, 900mOhm Secondary 320 µH Surface Mount
In Stock
739
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-CST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
-
Type
Invasive
Inductance
320 µH
ET (Volt-Time)
20VµS
Turns Ratio - Primary:Secondary
1:40
Current Ratio
-
DC Resistance (DCR)
6mOhm Primary, 900mOhm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.303" L x 0.272" W (7.70mm x 6.90mm)
Height - Seated (Max)
0.210" (5.33mm)
Termination Style
Gull Wing
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
750
