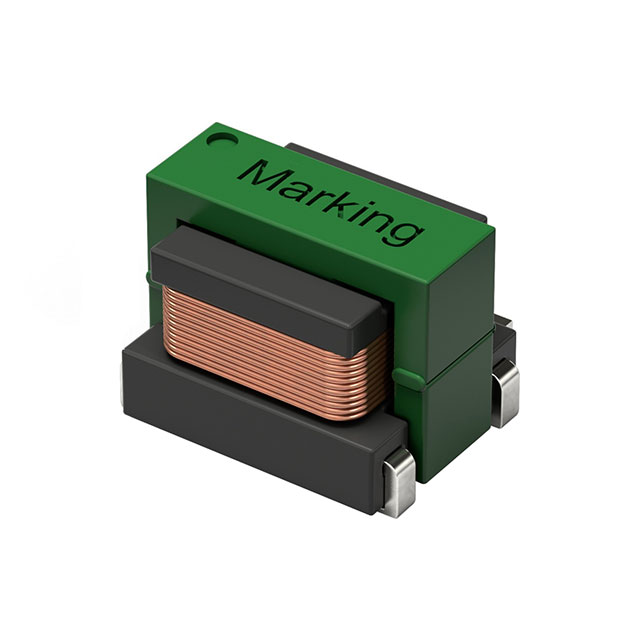

749252030 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
749252030
Product Number:
749252030
MFR Standard Lead Time:
24 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:30 7A SMD
Datasheet:
Descnt:
7 A 1:30 Current Sense Transformer 1MHz 3mOhm Primary, 800mOhm Secondary 74 µH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-CST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
1MHz
Type
Invasive
Current Rating (Amps)
7 A
Inductance
74 µH
ET (Volt-Time)
13.5VµS
Turns Ratio - Primary:Secondary
1:30
Current Ratio
-
DC Resistance (DCR)
3mOhm Primary, 800mOhm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.185" L x 0.183" W (4.70mm x 4.65mm)
Height - Seated (Max)
0.140" (3.55mm)
Termination Style
Gull Wing
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
2,000
