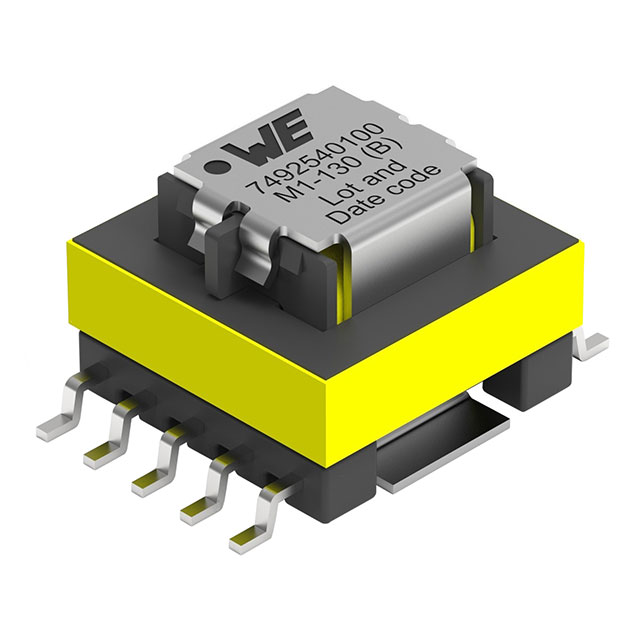

7492540100 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
7492540100
Product Number:
7492540100
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:100 40A SMD
Datasheet:
Descnt:
40 A 1:100 Current Sense Transformer 1MHz 0.28mOhm Primary, 805mOhm Secondary 5.6 mH Surface Mount
In Stock
532
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-CST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
1MHz
Type
Invasive
Current Rating (Amps)
40 A
Inductance
5.6 mH
ET (Volt-Time)
248Vµs
Turns Ratio - Primary:Secondary
1:100
Current Ratio
-
DC Resistance (DCR)
0.28mOhm Primary, 805mOhm Secondary
Ratings
AEC-Q200
Mounting Type
Surface Mount
Size / Dimension
0.570" L x 0.524" W (14.48mm x 13.30mm)
Height - Seated (Max)
0.413" (10.50mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
225
