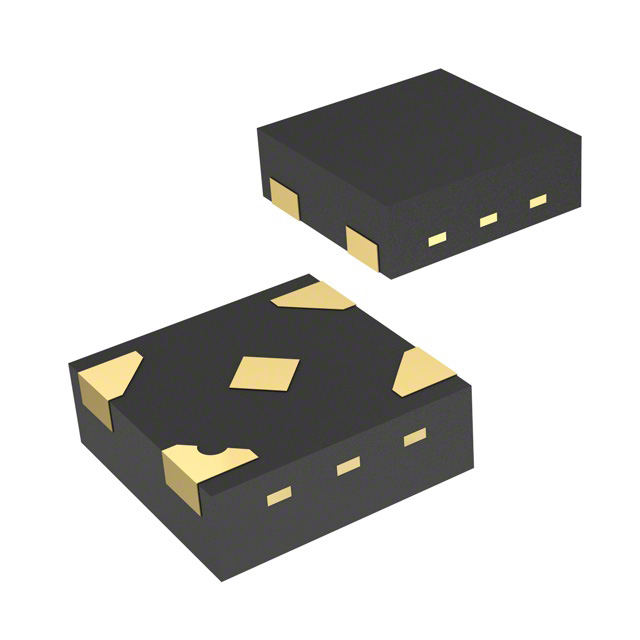

74AXP1G09GXH Nexperia USA Inc.
Favorite
Compare
Manufacturer:
Nexperia USA Inc.
MFR Product Number:
74AXP1G09GXH
Product Number:
74AXP1G09GXH
MFR Standard Lead Time:
Package/Case:
4-XFDFN Exposed Pad
Detailed Description:
IC GATE AND 1CH 2-INP 5X2SON
Datasheet:
Descnt:
AND Gate IC 1 Channel Open Drain 5-X2SON (0.80x0.80)
In Stock
10000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Nexperia USA Inc.
Series
74AXP
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Logic Type
AND Gate
Number of Circuits
1
Number of Inputs
2
Features
Open Drain
Voltage - Supply
0.7V ~ 2.75V
Current - Quiescent (Max)
600 nA
Current - Output High, Low
-, 8mA
Input Logic Level - Low
-
Input Logic Level - High
-
Max Propagation Delay V, Max CL
4.1ns 2.5V, 5pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Supplier Device Package
5-X2SON (0.80x0.80)
Package / Case
4-XFDFN Exposed Pad
Base Product Number
74AXP1G09
-
Documents & Media
PCN Packaging
Label Chg 12/Mar/2017
All Dev Label Chgs 2/Aug/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
10,000
