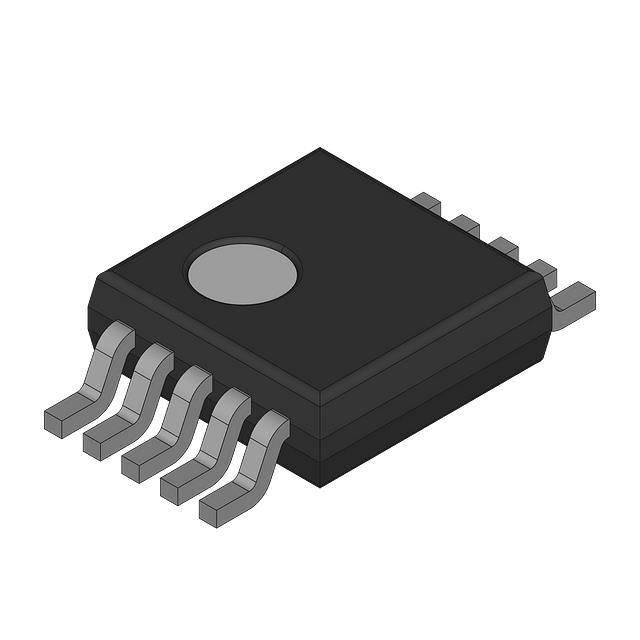

74AXP2T08DPJ Nexperia USA Inc.
Favorite
Compare
Manufacturer:
Nexperia USA Inc.
MFR Product Number:
74AXP2T08DPJ
Product Number:
74AXP2T08DPJ
MFR Standard Lead Time:
Package/Case:
10-TFSOP, 10-MSOP (0.118\, 3.00mm Width)
Detailed Description:
IC GATE AND 2CH 2-INP 10TSSOP
Datasheet:
Descnt:
AND Gate IC 2 Channel Schmitt Trigger 10-TSSOP
In Stock
20305
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Nexperia USA Inc.
Series
74AXP
Packaging
Bulk
Part Status
Not For New Designs
Logic Type
AND Gate
Number of Circuits
2
Number of Inputs
2
Features
Schmitt Trigger
Voltage - Supply
0.7V ~ 2.75V
Current - Quiescent (Max)
500 nA
Current - Output High, Low
12mA, 12mA
Input Logic Level - Low
0.35V ~ 0.8V
Input Logic Level - High
1.05V ~ 3.7V
Max Propagation Delay V, Max CL
6.5ns 5V, 5pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Supplier Device Package
10-TSSOP
Package / Case
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Base Product Number
74AXP2T08
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,416
