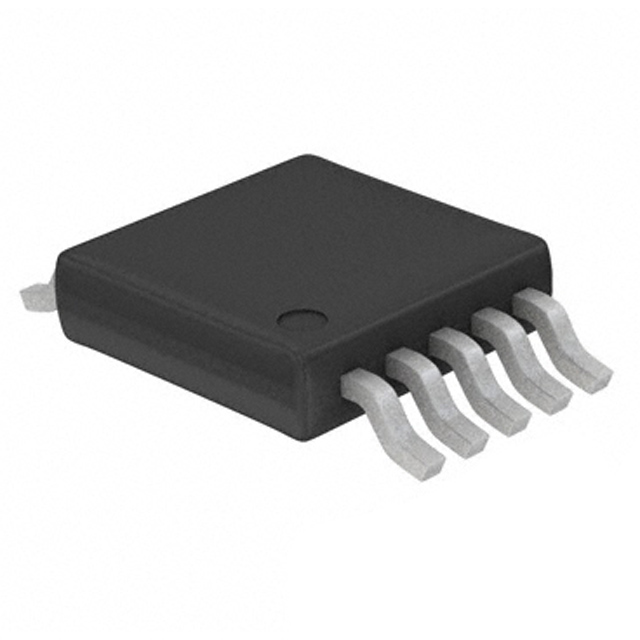

74LVC2G3157DPJ Nexperia USA Inc.
Favorite
Compare
Manufacturer:
Nexperia USA Inc.
MFR Product Number:
74LVC2G3157DPJ
Product Number:
74LVC2G3157DPJ
MFR Standard Lead Time:
6 Weeks
Package/Case:
10-TFSOP, 10-MSOP (0.118\, 3.00mm Width)
Detailed Description:
IC SWITCH SPDT X 2 15OHM 10TSSOP
Datasheet:
Descnt:
2 Circuit IC Switch 2:1 15Ohm 10-TSSOP
In Stock
2518
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Nexperia USA Inc.
Series
74LVC
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
2
On-State Resistance (Max)
15Ohm
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
1.65V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
5.7ns, 3.8ns
-3db Bandwidth
300MHz
Charge Injection
7.5pC
Channel Capacitance (CS(off), CD(off))
6pF
Current - Leakage (IS(off)) (Max)
5µA
Crosstalk
-54dB 10MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package
10-TSSOP
Base Product Number
74LVC2G3157
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
