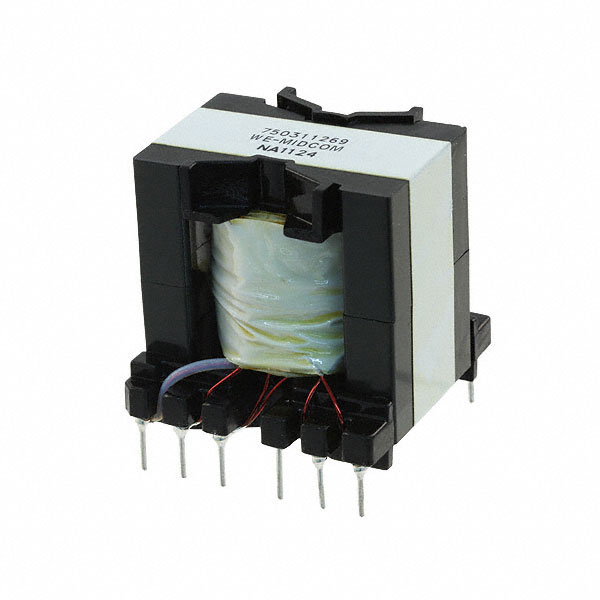

750311269 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750311269
Product Number:
750311269
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 600UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3750Vrms Isolation 70kHz Through Hole
In Stock
261
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLON
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
NLC30001
Chipset Manufacturer
On Semiconductor
Voltage - Primary
85 ~ 265V
Voltage - Auxiliary
-
Voltage - Isolation
3750Vrms
Inductance Frequency
600µH 10kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.400" L x 1.470" W (35.56mm x 37.34mm)
Height - Seated (Max)
1.355" (34.42mm)
Footprint
1.400" L x 1.470" W (35.56mm x 37.34mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-3199
Standard Package
25
