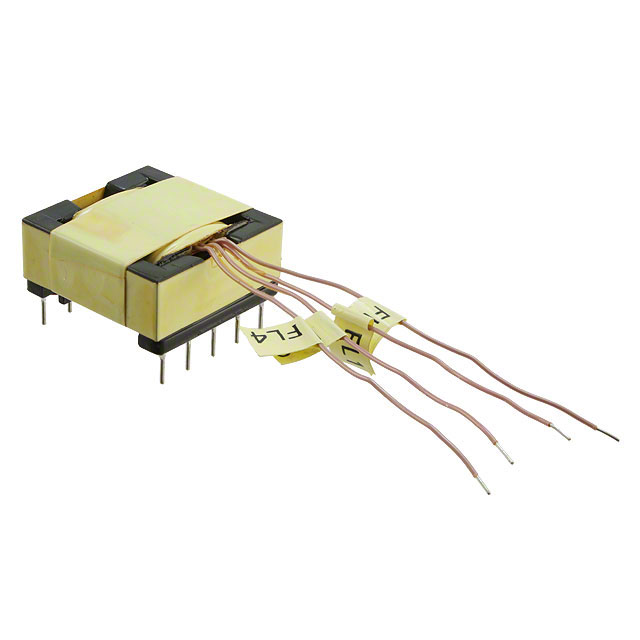

750311475 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750311475
Product Number:
750311475
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
XFMR LED DR AC/DC CONV 1.72MH TH
Datasheet:
Descnt:
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 4500Vrms Isolation 39kHz Through Hole
In Stock
17
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-UNIT, MID-OLON
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
LED Drivers, AC/DC SMPS
Intended Chipset
NCL30000
Chipset Manufacturer
On Semiconductor
Voltage - Primary
127 ~ 431V
Voltage - Auxiliary
-
Voltage - Isolation
4500Vrms
Inductance Frequency
1.72mH 10kHz
Frequency
39kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.060" L x 1.050" W (26.92mm x 26.67mm)
Height - Seated (Max)
0.575" (14.60mm)
Footprint
1.060" L x 1.050" W (26.92mm x 26.67mm)
Documents & Media
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
Product Drawings
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
732-2899
Standard Package
49
