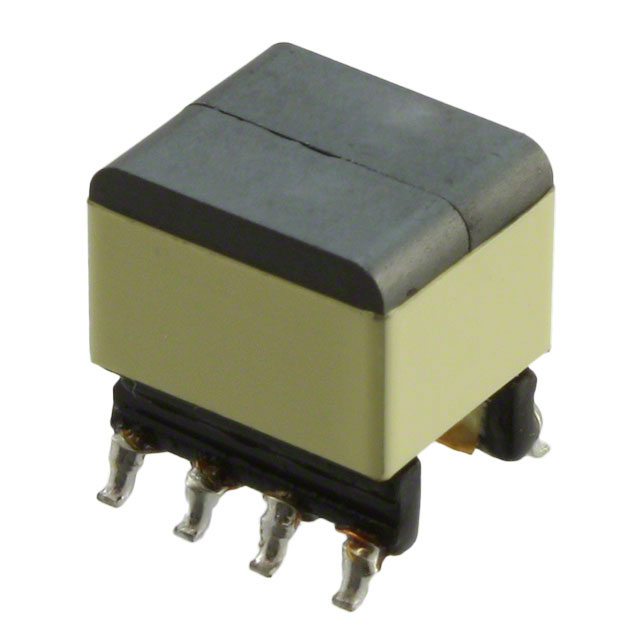

750311780 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750311780
Product Number:
750311780
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
XFMR 2UH SMD
Datasheet:
Descnt:
For SMPS Transformer 2000Vrms Isolation Surface Mount
In Stock
1613
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-IBTI
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Applications
-
Intended Chipset
TPS55010
Chipset Manufacturer
Texas Instruments
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
2000Vrms
Inductance Frequency
2µH 100kHz
Frequency
-
Operating Temperature
-
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.420" (10.67mm)
Footprint
0.385" L x 0.360" W (9.78mm x 9.14mm)
Documents & Media
PCN Design/Specification
Mult Devs Marking 10/Jun/2021
75031yyyy Datasheet Correction 08/Mar/2024
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
300
