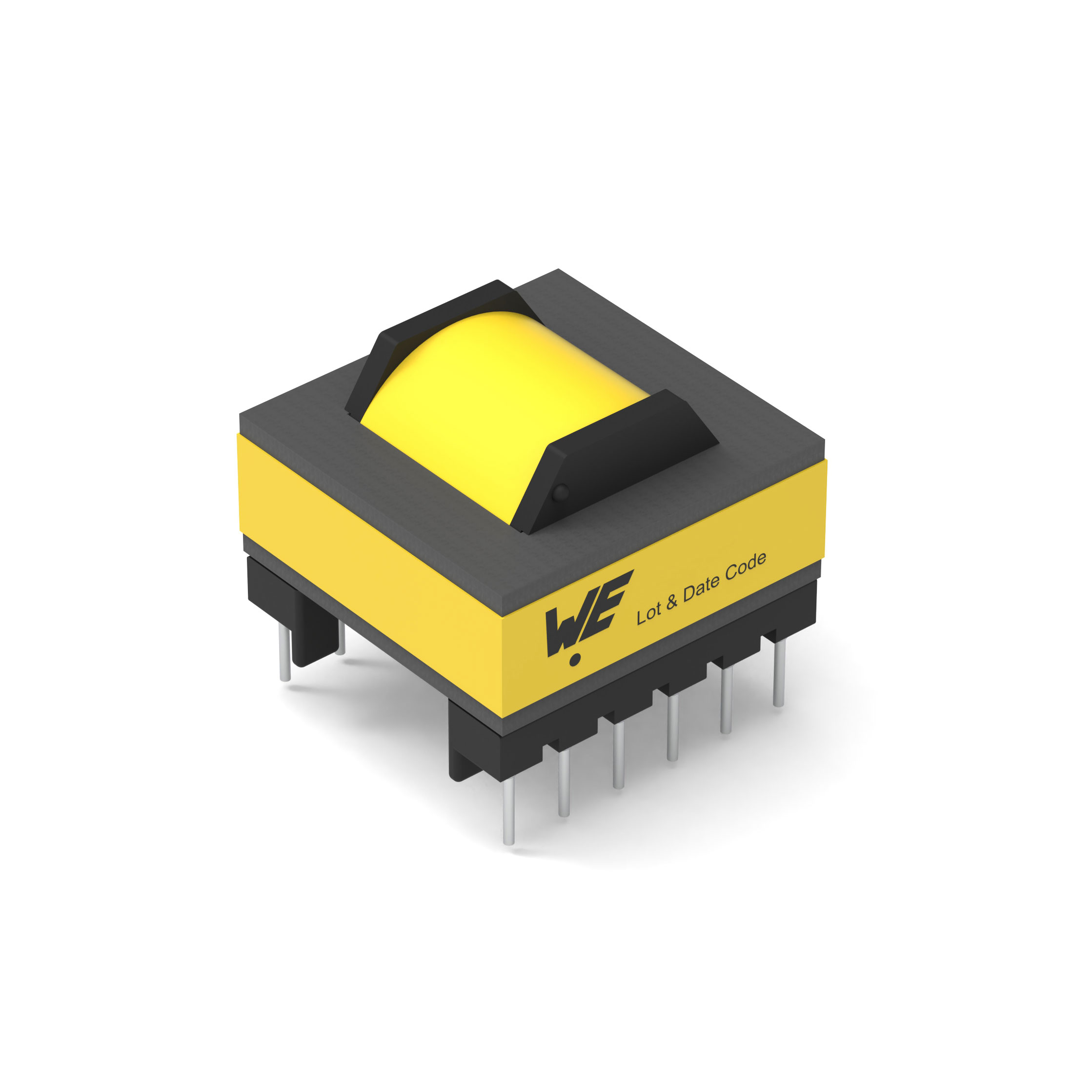

750312646 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750312646
Product Number:
750312646
MFR Standard Lead Time:
30 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 200UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 1500Vrms Isolation 70kHz Through Hole
In Stock
41
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
MID-OLLT
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
On Semiconductor
Voltage - Primary
120 ~ 430V
Voltage - Auxiliary
22V 10mA
Voltage - Isolation
1500Vrms
Inductance Frequency
200µH 10kHz
Frequency
70kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max)
0.984" (25.00mm)
Footprint
-
Style
Laminated Core
-
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Bobbin Material 06/Jun/2024
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-750312646
Standard Package
42
