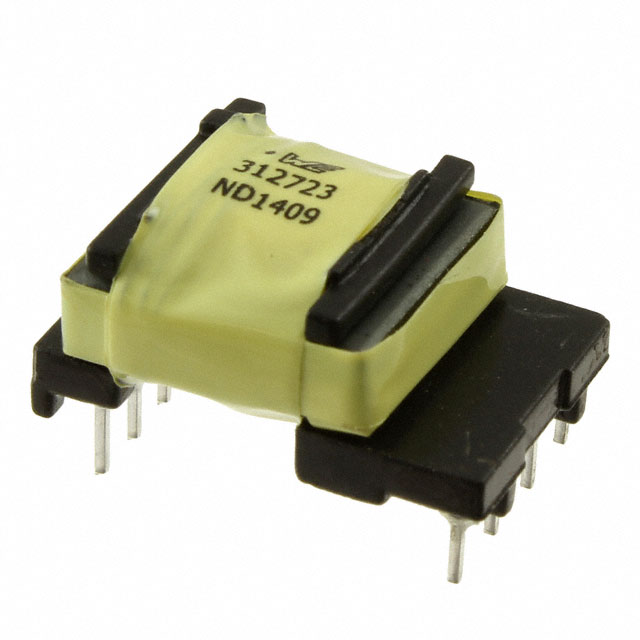

750312723 Würth Elektronik
Favorite
Compare
Manufacturer:
Würth Elektronik
MFR Product Number:
750312723
Product Number:
750312723
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 925UH TH
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 4500Vrms Isolation 130kHz Through Hole
In Stock
122
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Würth Elektronik
Series
WE-FB, MID-OLTI
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
UCC287xx, UCC289xx
Chipset Manufacturer
Texas Instruments
Voltage - Primary
85 ~ 265V
Voltage - Auxiliary
20V
Voltage - Isolation
4500Vrms
Inductance Frequency
925µH 10kHz
Frequency
130kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Size / Dimension
0.560" L x 0.805" W (14.22mm x 20.45mm)
Height - Seated (Max)
0.415" (10.54mm)
Footprint
0.560" L x 0.805" W (14.22mm x 20.45mm)
Documents & Media
Datasheets
PCN Design/Specification
Mult Devs Product Improvement 08/Jun/2023
75031yyyy Datasheet Correction 08/Mar/2024
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
1297-1022
Standard Package
130
